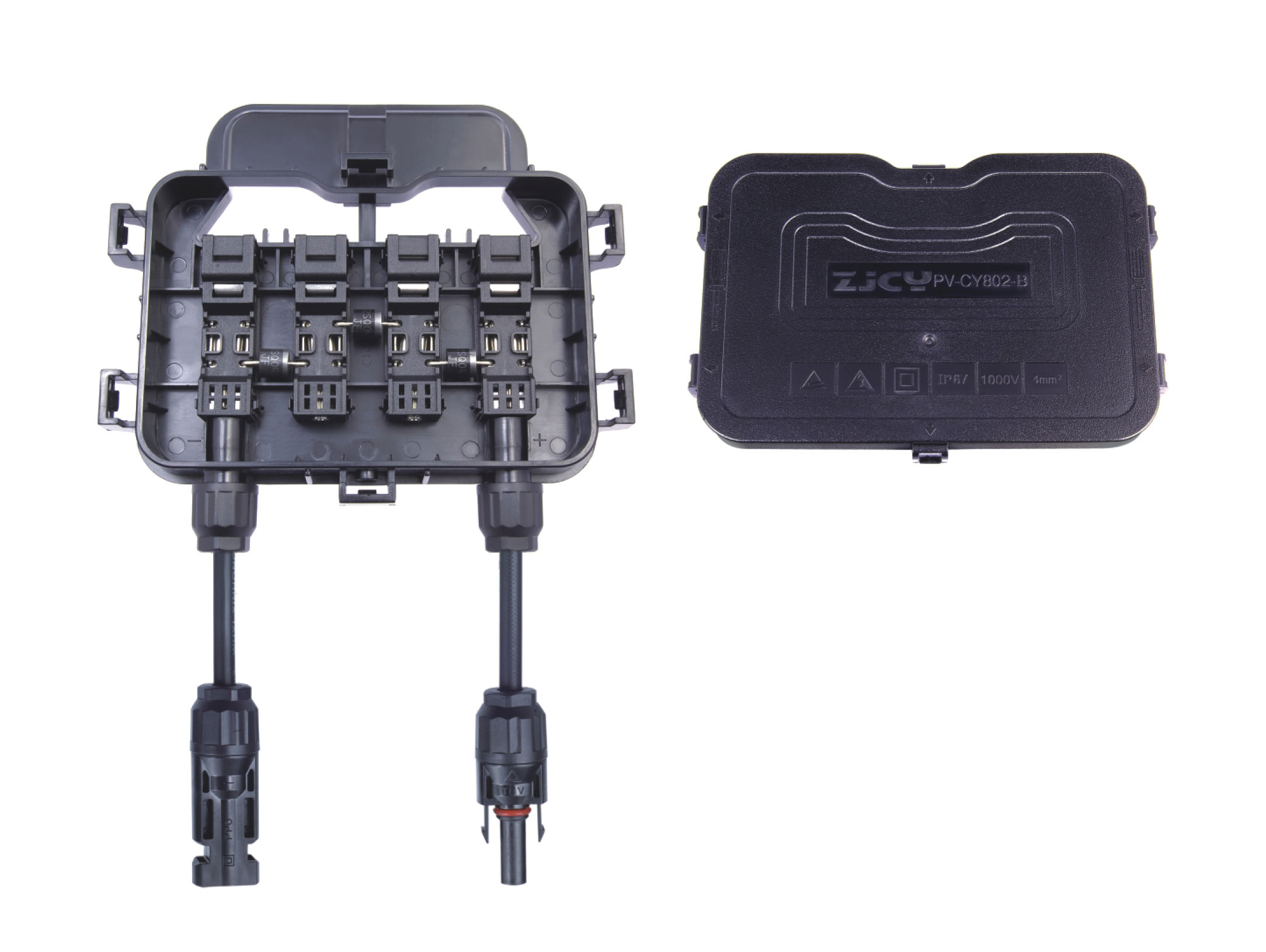

PV-CY802-B

TUV CertificateClick to download
UL CertificateClick to download
Patent CertificateClick to download

PV-CY802-B产品技术参数

Certifications/认证	TUV	UL
Certificate No./证书号码	R50133917	E330411
Rated Current/额定电流	12A
Rated Voltage/额定电压	1000VDC	600VDC
Temperature Range/温度范围	-40℃～+85℃
Safety Class/安全等级	Class II/ II级
Protection Degree/防护等级	IP67	IP65
Wire Size Range/线缆尺寸范围	4mm2	12AWG
Flase Resistance/阻燃等级	5VA
Contact Resistance/接触电阻	≤5mΩ
Waterproofing Structure/防水结构	Seal/密封圈
Volume of Sillcon Gel/灌胶量	N/A/不适用
Width of Copper Ribbons/焊带宽度	Up to 6mm/最大6mm
Connection Method/连接方式	Spring Clamping/弹簧夹紧
Insulation Material/绝缘材料	PPO
Contact Material/接触材料	Copper alloy,tin plated/铜合金，镀锡

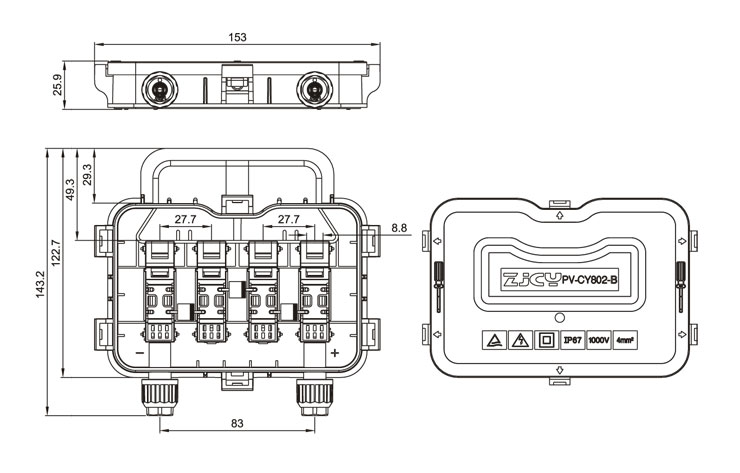

Overall Dimension/外形尺寸	151.4×142.7×25.5mm aaa replica wholesale
Optional Connector/可选连接器	PV-CY01L,MC4

1:1 best replica bags UK in discount from online store. Fast shipping. Money back guaranty.
UK cheap replica golden goose with high quality for men and women online.
Where can you buy cheap Richard Mille replique UK? Swiss fake Breitling online store can be a good choice.

Product Family/产品族
Product number产品型号	Rated Current 额定电流	Circuit 电路	Distance between the terminals 端子间距	No. of diode 二极管数量	Diode type 二极管型号	Certifications 认证
PV-CY802-B	12A		27.7mm	6	12SQ045	TUV&UL
